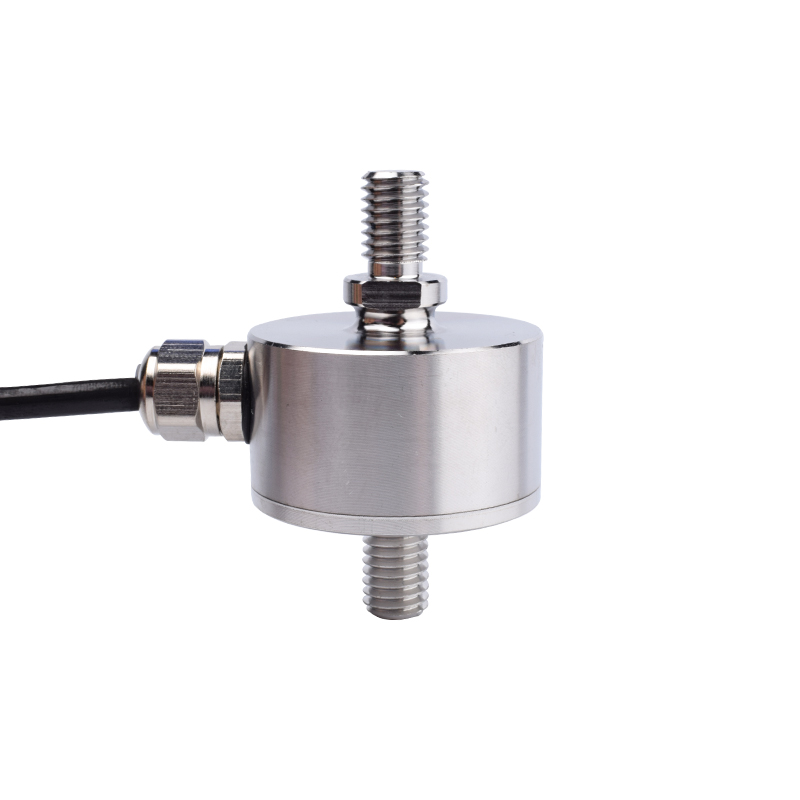

In the realm of force measurement, load cells and force sensors are indispensable tools for translating mechanical forces into quantifiable electrical signals.  However, achieving consistent and reliable measurements requires addressing several performance parameters, one of which is creep.  This phenomenon, though often subtle, can significantly impact the accuracy of force sensors over time.  In this blog, we’ll explore what creep is, why it occurs, and how it affects force measurement systems.

What is Creep?

Creep refers to the gradual change in a force sensor’s output signal when a constant load is applied over an extended period.  Even if the applied force remains steady, the sensor’s reading may "drift" slightly over minutes or hours.  This drift is not caused by external factors like temperature fluctuations or vibrations but is inherent to the sensor’s material properties and design.

For example, if a 10 kN load is applied to a sensor, an ideal device would maintain a stable output (e.g., 10.00 mV) indefinitely.  In reality, creep might cause the output to drift to 10.05 mV after 30 minutes, even though the actual force hasn’t changed.

Why Does Creep Occur?

Creep arises primarily from the viscoelastic behavior of materials used in force sensors.  Most load cells rely on strain gauges bonded to a metallic or composite structure (the "spring element").  When force is applied, the spring element deforms slightly, and the strain gauges measure this deformation.  However, no material is perfectly elastic—over time, internal stresses relax at a microscopic level, causing the material to deform further.  This slow deformation translates into a changing output signal.

Key factors influencing creep include:

1.  Material Selection: Metals like aluminum exhibit higher creep than stainless steel or alloy steels.  Polymers or composites may show even more pronounced effects.

2.  Load Magnitude: Higher loads amplify creep effects.

3.  Temperature: Elevated temperatures can accelerate creep due to increased molecular mobility.

4.  Sensor Design: A poorly optimized spring element geometry may concentrate stresses, worsening creep.

Impact on Measurement Accuracy

Creep is particularly problematic in applications requiring long-term static force monitoring, such as:

- Industrial weighing systems (e.g., silos, tank weighing).

- Structural health monitoring (e.g., bridges, buildings).

- Material testing machines (e.g., tensile/compression tests).

Even a small creep-induced drift can lead to cumulative errors in data logging or process control.  For instance, in a pharmaceutical production line, a drifting sensor might cause incorrect dosing over time, leading to product waste or regulatory non-compliance.

Quantifying and Compensating for Creep

Manufacturers characterize creep during sensor calibration.  A common test involves applying a rated load for 30 minutes and measuring the output deviation.  Creep is typically expressed as a percentage of the full-scale output (e.g., "±0.05% FS/30min").

To mitigate creep:

1.  Material Optimization: High-quality sensors use creep-resistant alloys (e.g., 17-4 PH stainless steel) and advanced composites.

2.  Design Improvements: Finite element analysis (FEA) helps optimize spring element geometry to distribute stresses evenly.

3.  Signal Conditioning: Modern amplifiers often include creep compensation algorithms.

4. Temperature Control: Active or passive thermal stabilization minimizes temperature-related drift.

Creep is a fundamental challenge in force sensor design, rooted in the physics of materials.  While it cannot be eliminated entirely, understanding its causes and mitigation strategies empowers engineers to select sensors with appropriate specifications for their applications.  When evaluating force sensors, always check the manufacturer’s creep rating and ensure it aligns with your measurement duration and precision requirements.  After all, in precision instrumentation, even the smallest drift matters!

By prioritizing creep-resistant technologies and smart compensation methods, modern force sensors continue to push the boundaries of accuracy and reliability in an ever-demanding industrial landscape.
