Miniature force sensor
Miniature force sensor

Small size load cell 0-100KN pressure transducer NF114

Model: NF114
Category: Single point load cells
Capacity: 1,2,5,10,20,50,75,100 kN
Rated Output: 1.5±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: 0.4kg
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Small size load cell 0-100KN pressure transducer NF114 is made of stainless steel. The miniature force sensor is based on strain gauge technology for compression force measurement. This load button load cell has eight ranges of 1,2,5,10,20,50,75,100 kN to choose from and can be used in many  applications.

  • Subminiature size
  • Small deformation

  • High dynamic response frequency

Applications

  • Automotive press assembly
  • New energy product assembly
  • Mold assembly

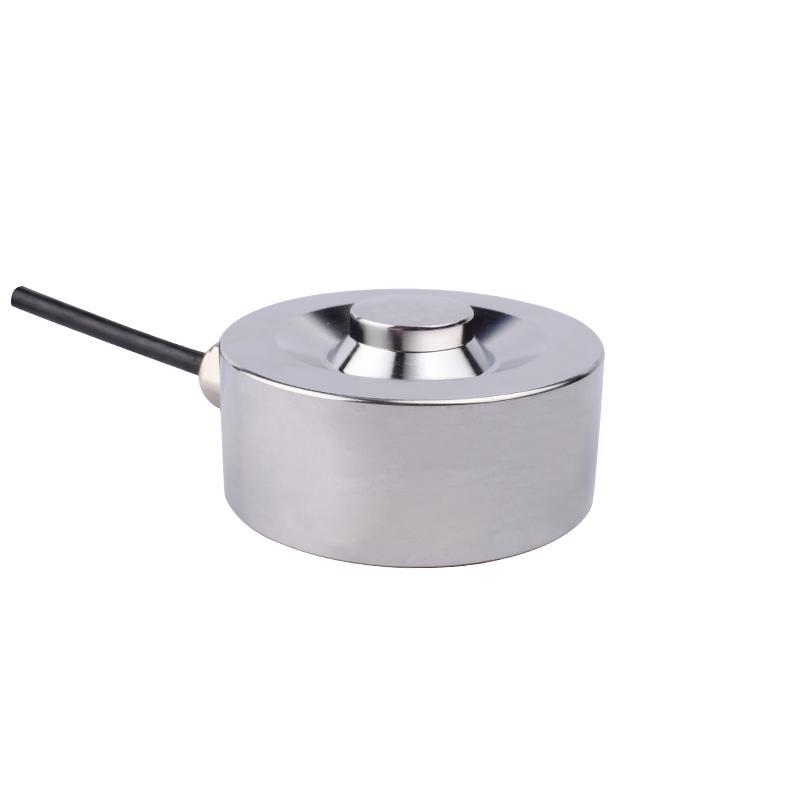

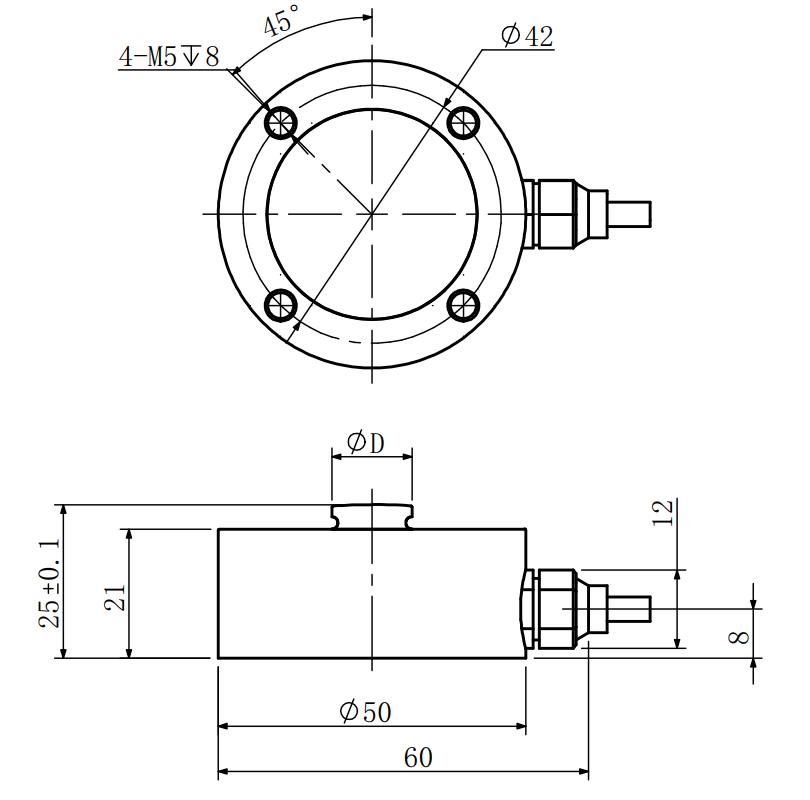

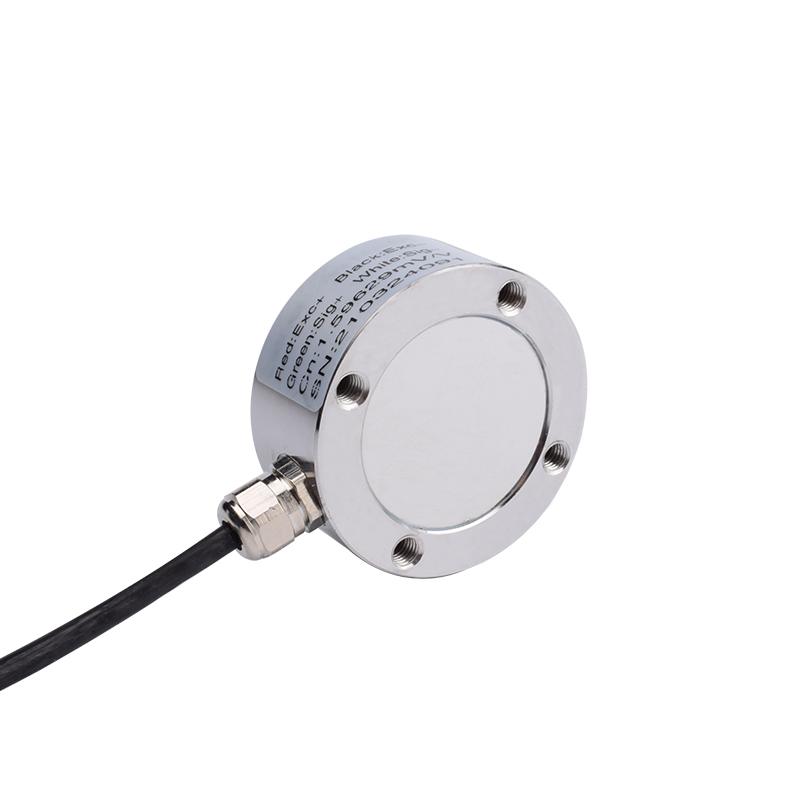

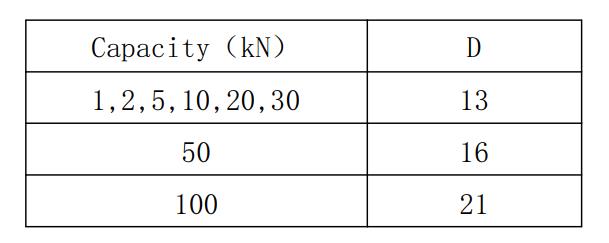

Mounting Dimension

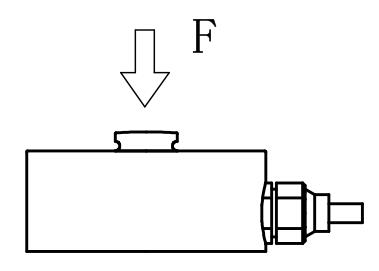

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 1,2,5,10,20,50,75,100 kN
Rated output 1.5±10%mV/V
Zero balance ±0.03 mV/V
Non-linearity 0.2%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size φ4×3000mm
