| Model: | NF110 |
| Category： | Single point load cells |
| Capacity: | 50,100,200,500kg,1,2,3T |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.03KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

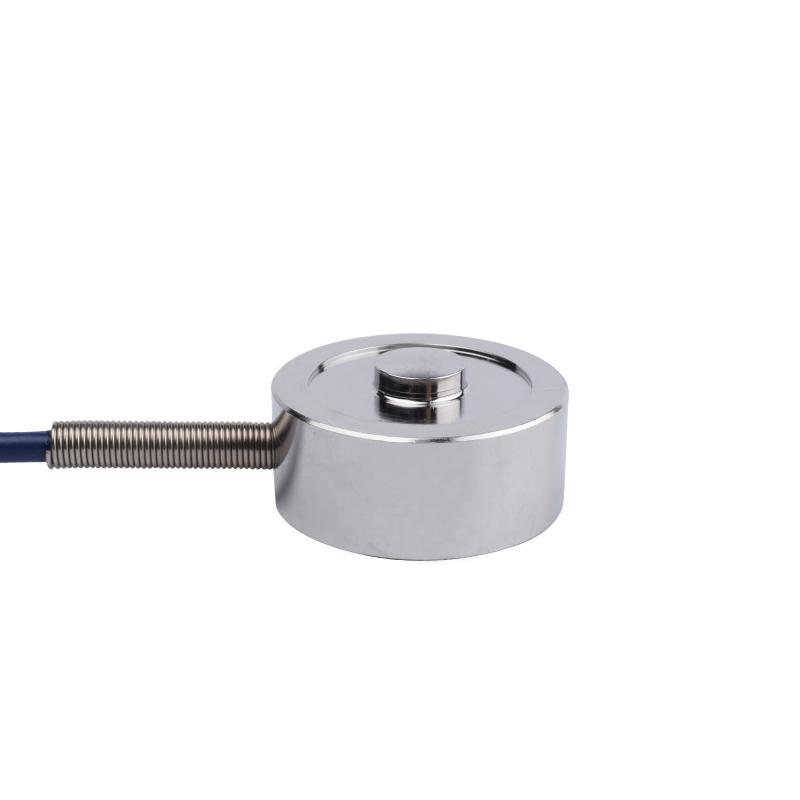

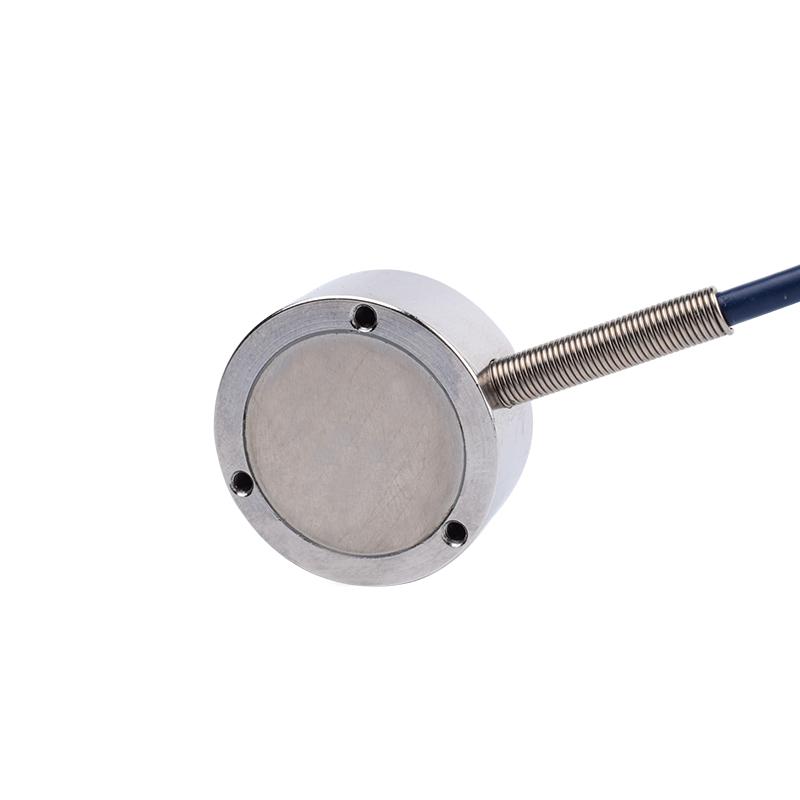

High Capacity Load Button micro pressure sensor NF110 is suitable for larger range testing. The high capacity load button offers button load cells in six capacity options that measure compressive loads from 500N to 20KN. The mini pressure sensormeasures loads in compression applications.
High Capacity Load Button
Applications
Mounting Dimension

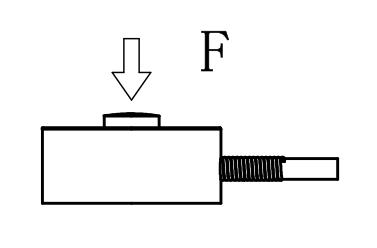

Load Direction

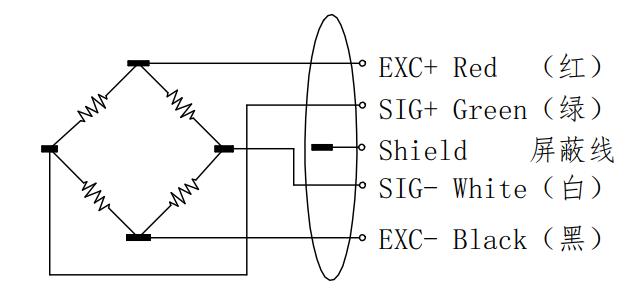

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500kg,1,2,3T |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 700±10Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ3×3000mm |
