| Model: | NF127 |
| Category： | Single point load cells |
| Capacity: | 10,20,50,100,200,500kg |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.2kg |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

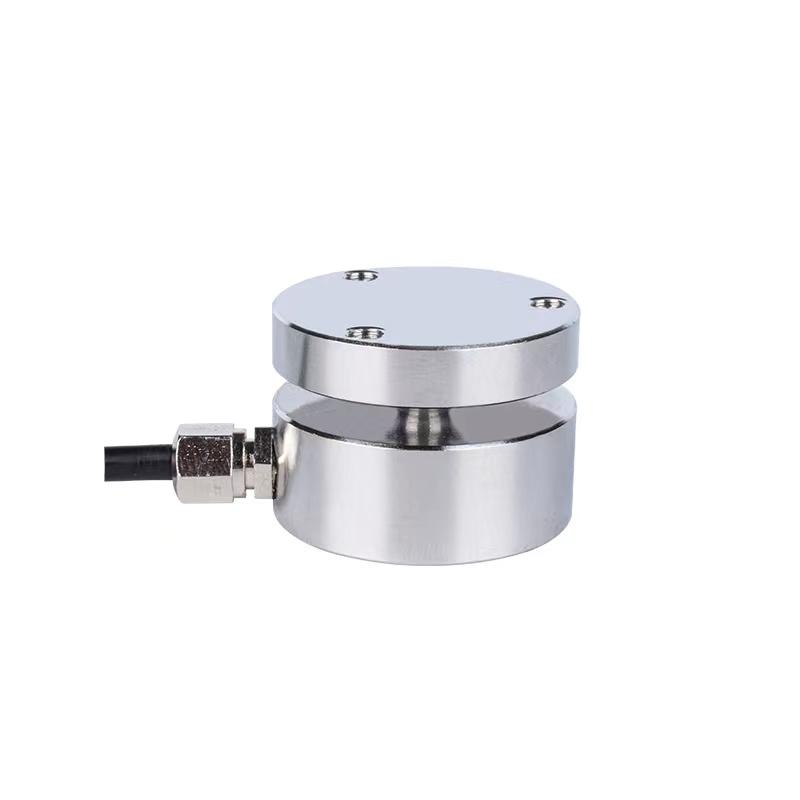

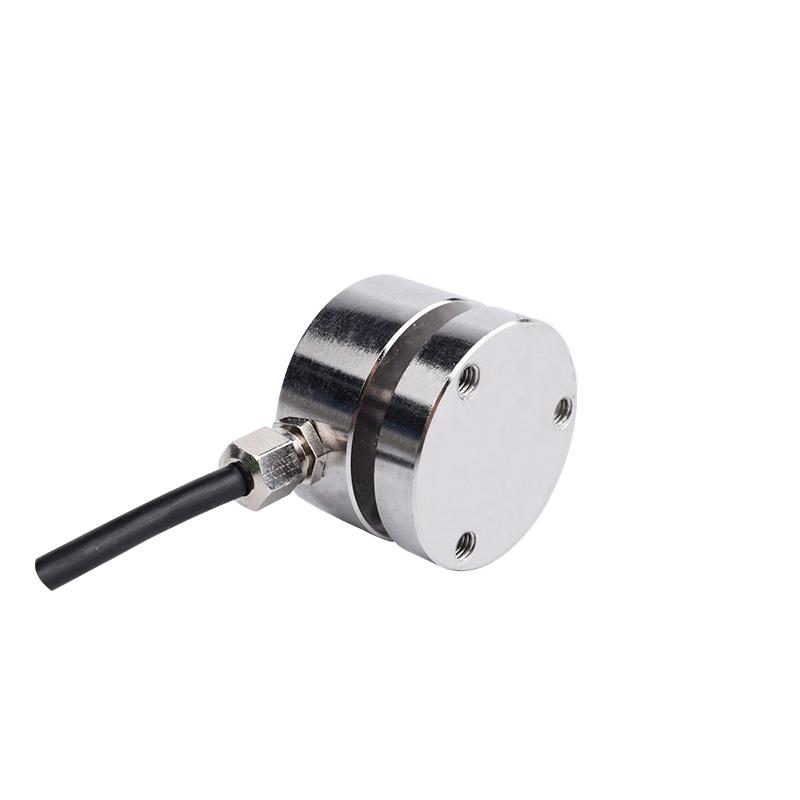

Micro flatbed pressure load cell NF127 is made of stainless steel. The subminiature load cell has six measuring ranges, respectively 0-10KG,0-20KG,0-50KG,0-100KG,0-200KG,0-500KG. The subminiature flange force sensor can be used in many applications.
Small deformation
Applications
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,100,200,500kg |
| Rated output | 1.5±10%mV/V |
| Zero balance | ± 0.03mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.30%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 700±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×3000mm |
| Material | Stainless Steel |
