| Model: | NF306 |
| Category： | Tension/Compression load cells |
| Capacity: | 5,10,20,50,100,200KG |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.1KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

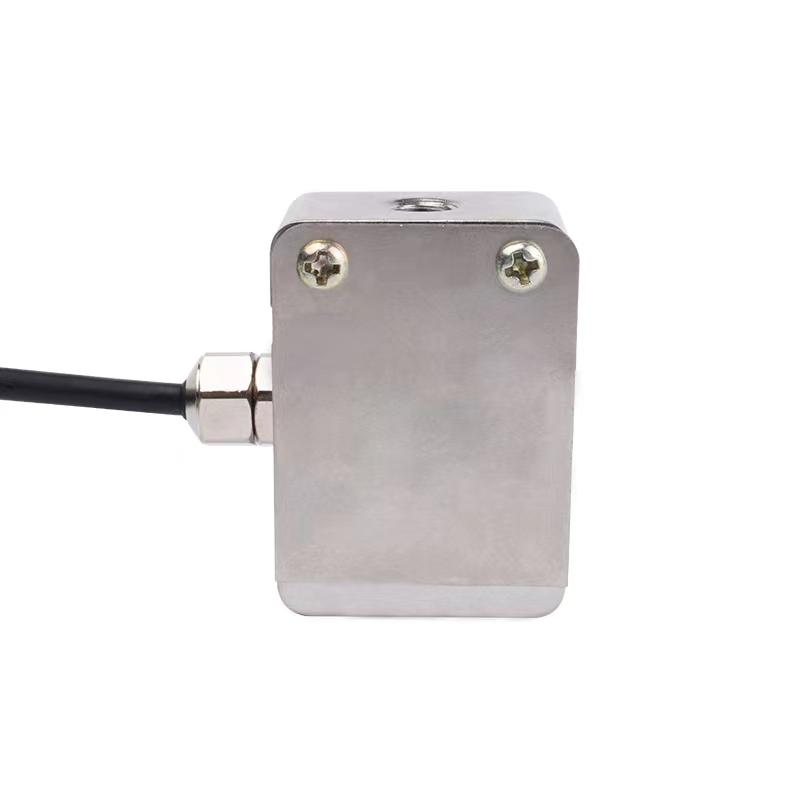

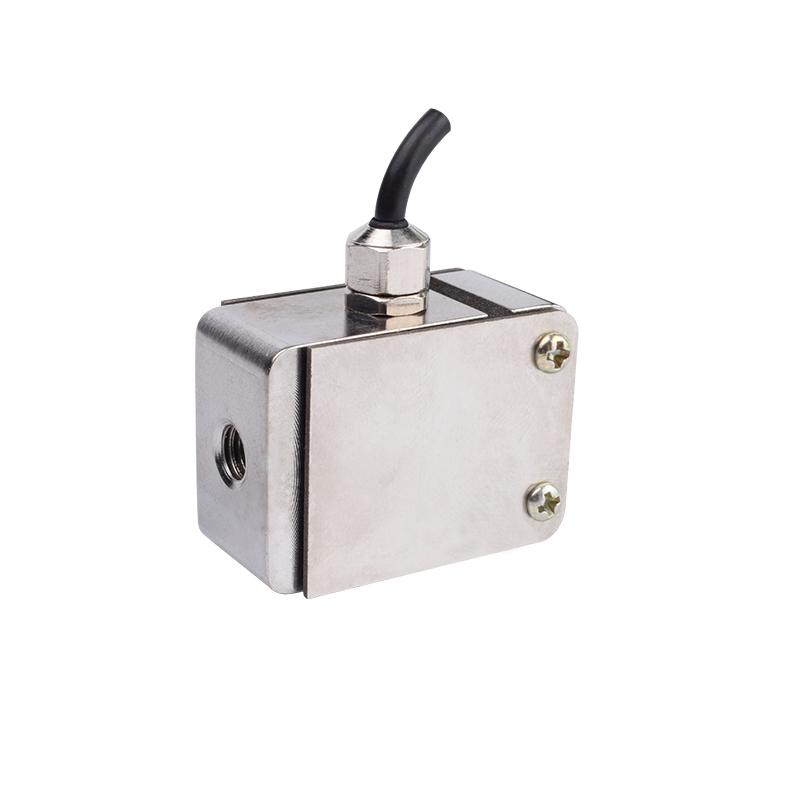

5,10,20,50,100,200KG S shaped load cell NF306 with high accuracy is designed for tension and compression force measurement application. The S-beam force sensor offers 0-5KG, 0-10KG, 0-20KG, 0-50KG, 0-100KG, 0-200KG six different measuring ranges to choose from. So the S type force sensor can be used in a variety of applications.
Applications

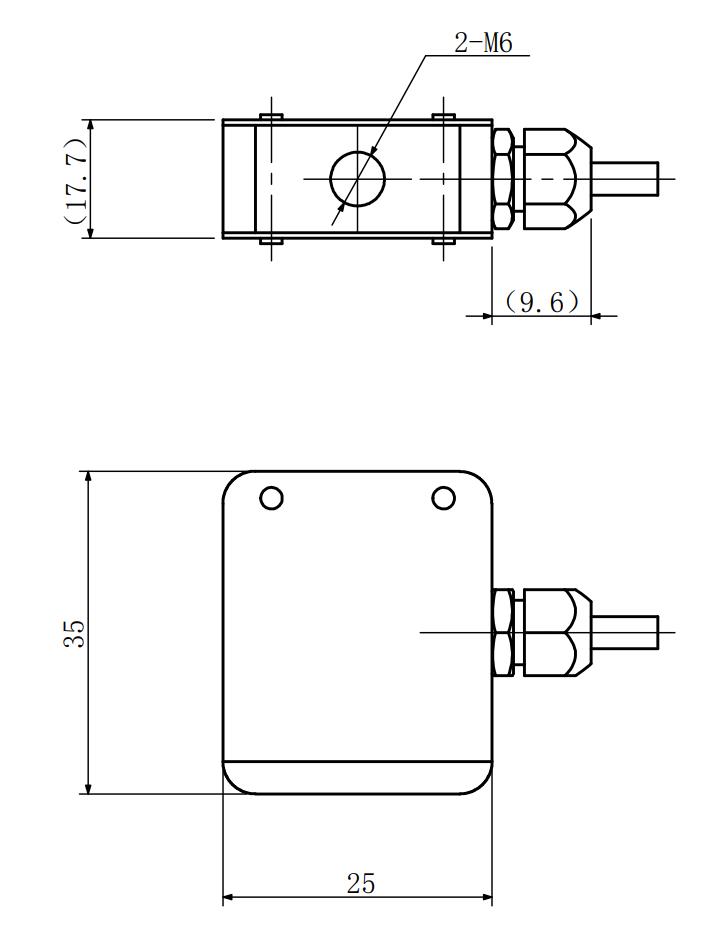

Mounting Dimension

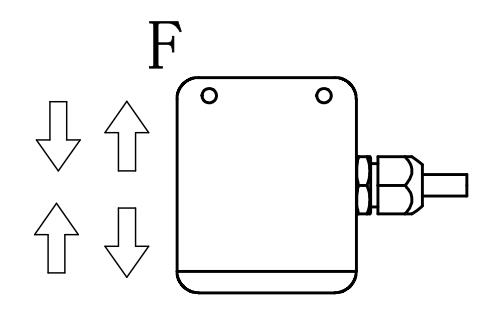

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,50,100,200KG |
| Rated output | 2.0±10%mV/V |
| Zero balance | ± 0.05mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.025%F.S./10℃ |
| Temp.effect on zero | 0.025%F.S./10℃ |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×3000mm |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
