| Model: | NF206 |
| Category： | Tension/Compression Load Cells |
| Capacity: | 1,2,5,10,20,50kN |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

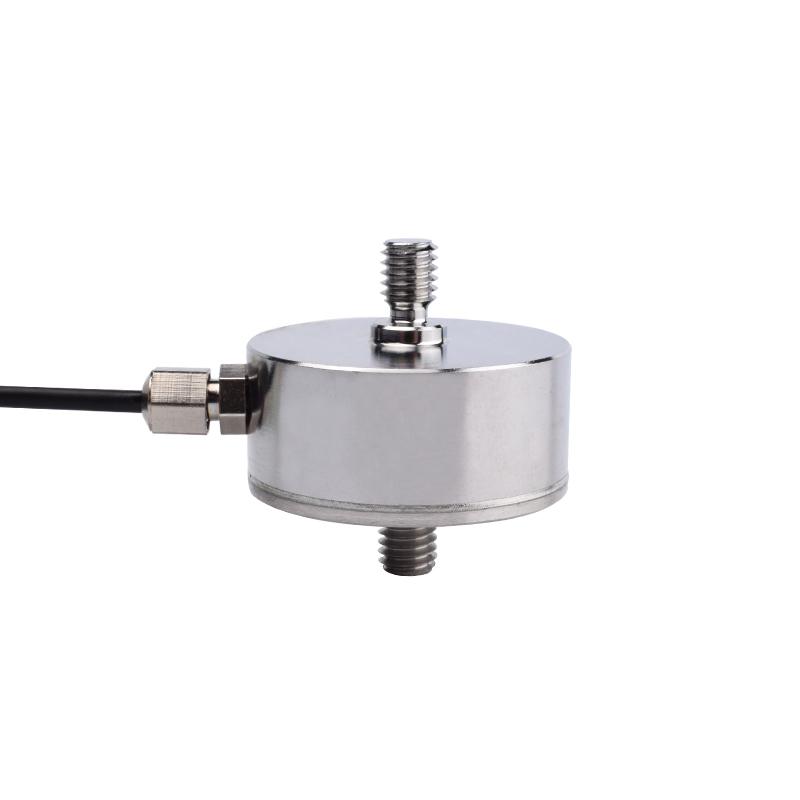

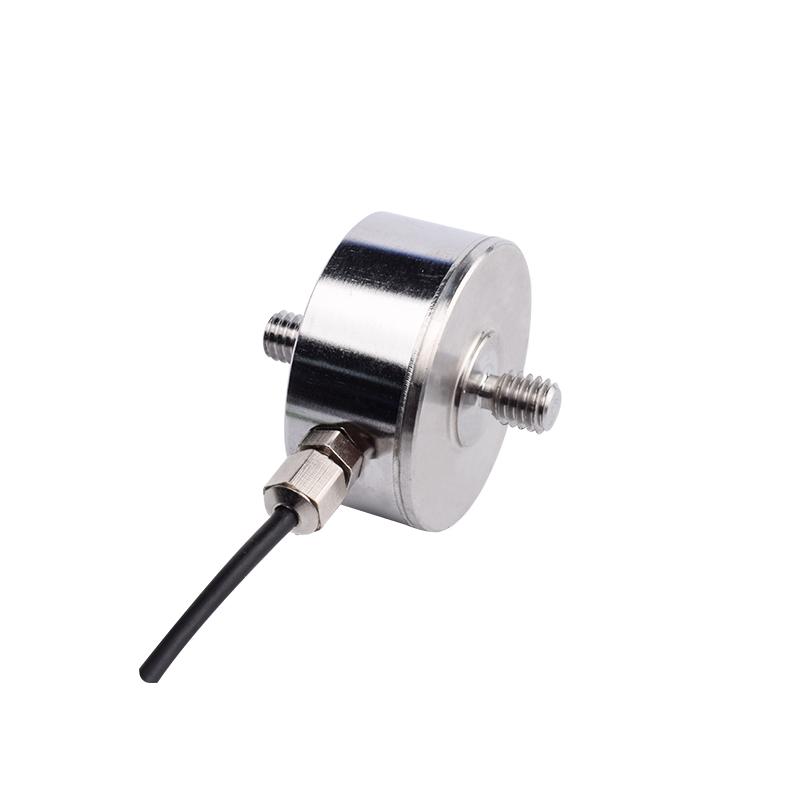

Tension and compression rod end load cell NF206 is made of stainless steel. The tension pressure sensor offers compact construction and wide capacity range intended for both tension and compression force measurement. The pull pressure force sensor is easier to install because it has threads on both sides.
Applications

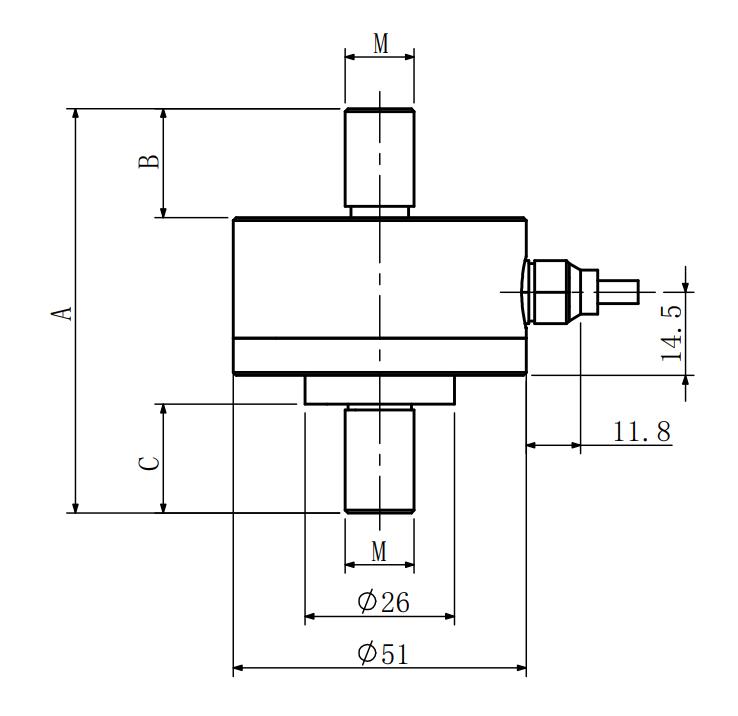

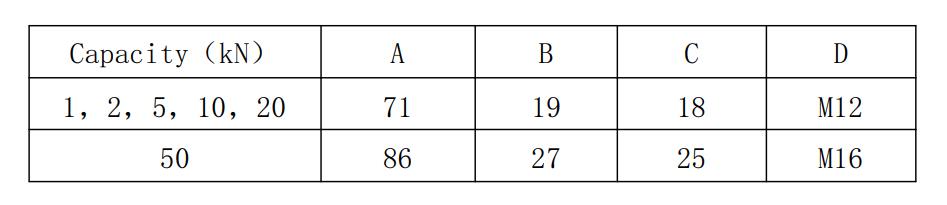

Mounting Dimension

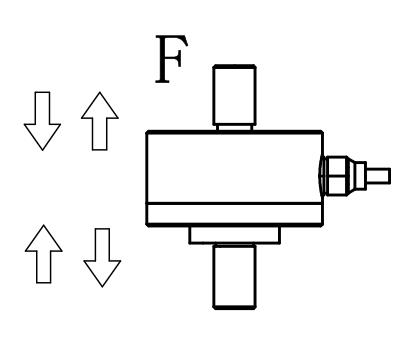

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 1,2,5,10,20,50kN |
| Rated output | 1.5±10%mV/V |
| Zero balance | ± 0.03mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ4×3000mm |
