Donut force sensor
Donut force sensor

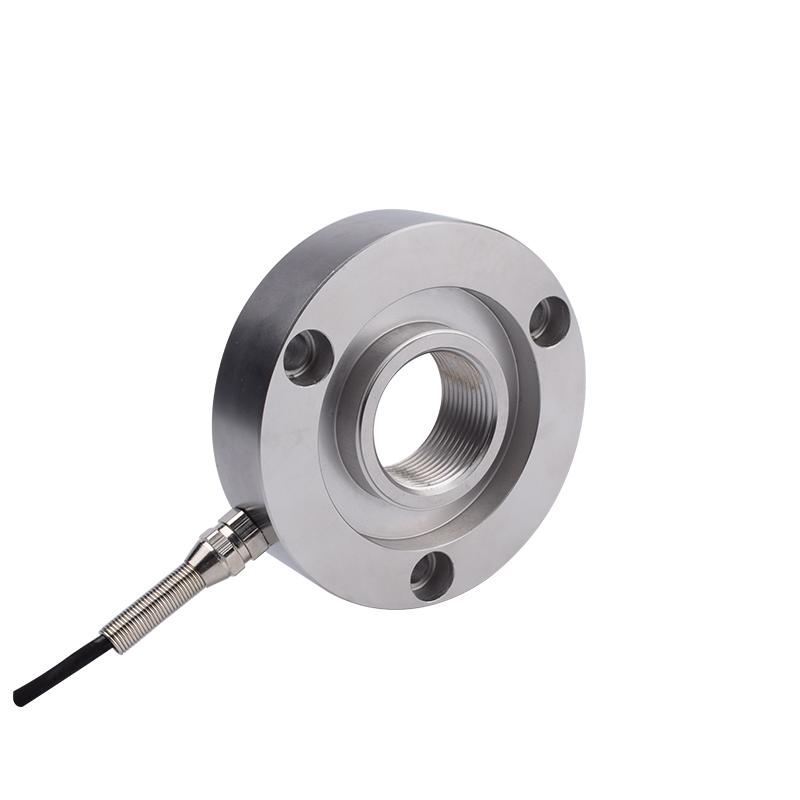

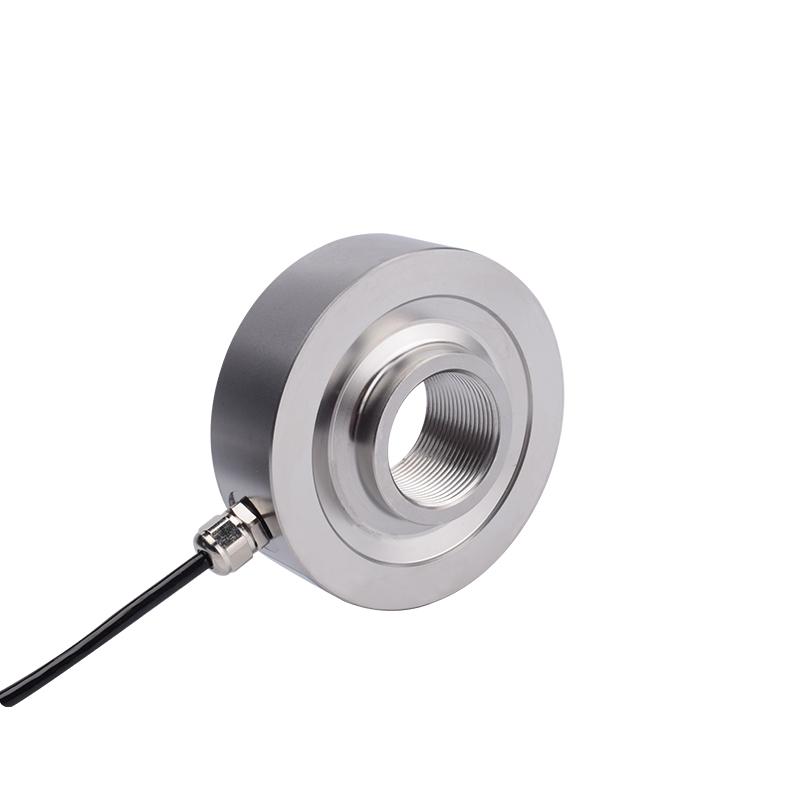

Ring load cell 500,1000,2000,3000,5000KG NF118

Model: NF118
Category: Ring load cells
Capacity: 500,1000,2000,3000,5000KG
Rated Output: 1.5±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: 1KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Ring load cell 500,1000,2000,3000,5000KG NF118  is made of stainless steel. The donut force sensor offers compact construction and wide capacity range intended for compression force measurement. The annular force transducer offers limitless possibilities for applications.

  • Compact structure
  • Low height
  • Small deformation

Applications

  • Automotive press assembly
  • 3C product testing
  • Medical testing

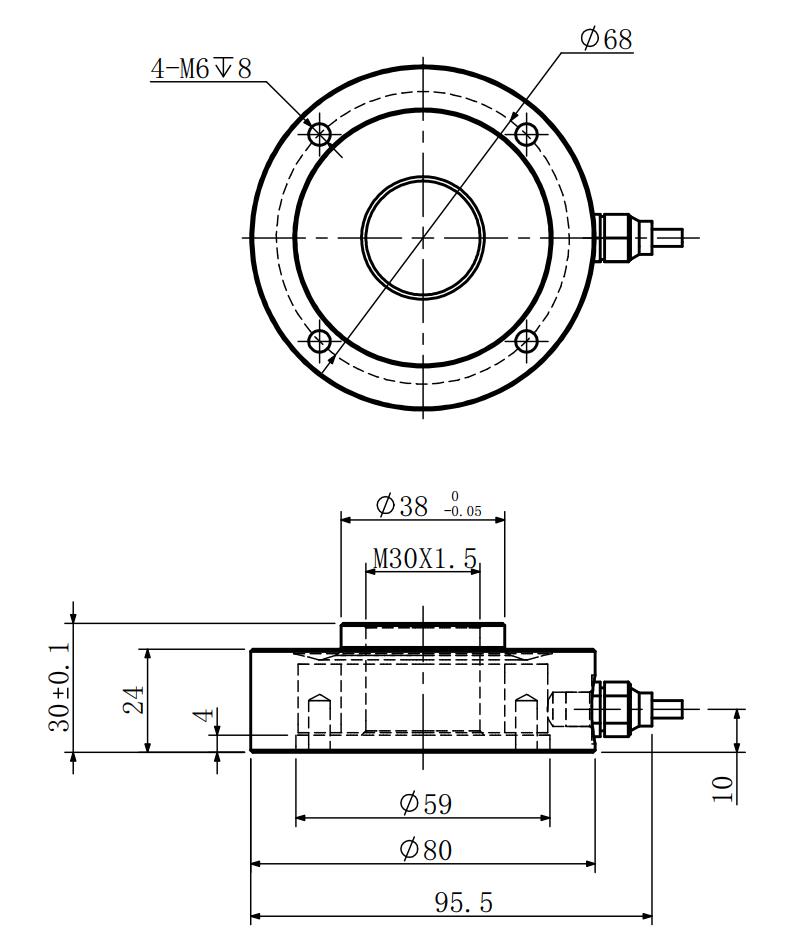

Mounting Dimension

Load Direction

Wiring Code

Specifications



Specifications Technique
Capacity 500,1000,2000,3000,5000KG
Rated output 1.5±10%mV/V
Zero balance ±0.3%F.S.
Non-linearity 0.2%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ4×3000mm



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
